K-1000C
5V~24V
| Pixel Number: | |
|---|---|
| Size: | |
| Weight: | |

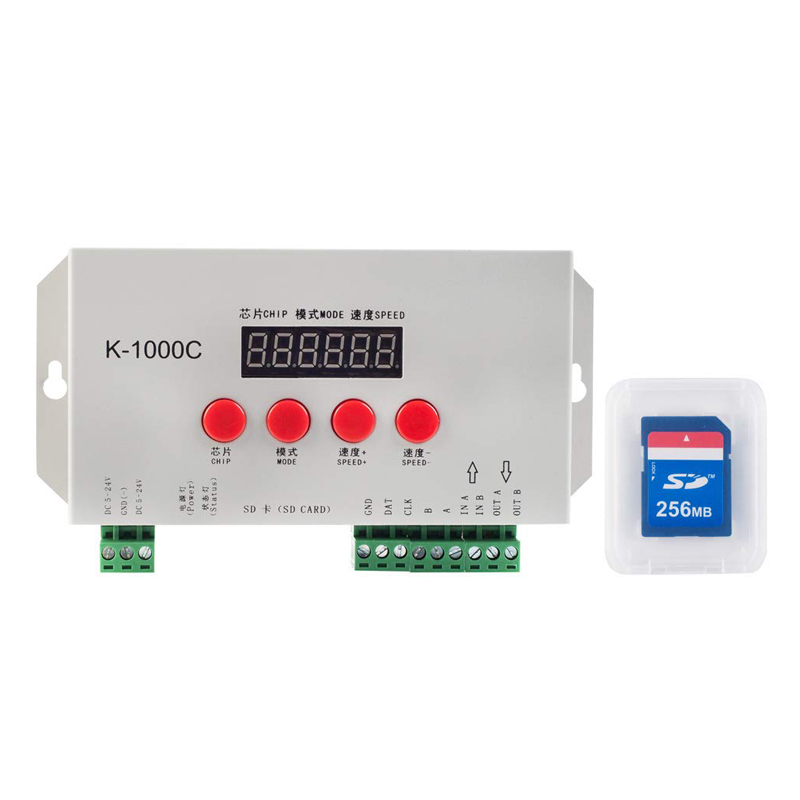

K-1000C WS2812B APA102C SK6812 WS2811 WS2801 Led Strip 2048 Pixels Controller DC5-24V Addressable Programmable Controller with SD Card
Introduction
For addressable or digital led strip, controller is a must to change the lighting modes. There's many different controller for magic led strip, including 3key Mini Controller, IR Controller, RF Controller, RF Music Controller, Bluetooth Controller, WiFi Controller, Bluetooth Music Controller, and other Addressable Controller.
Product Features
With computer software for editing lighting modes from files in SD card

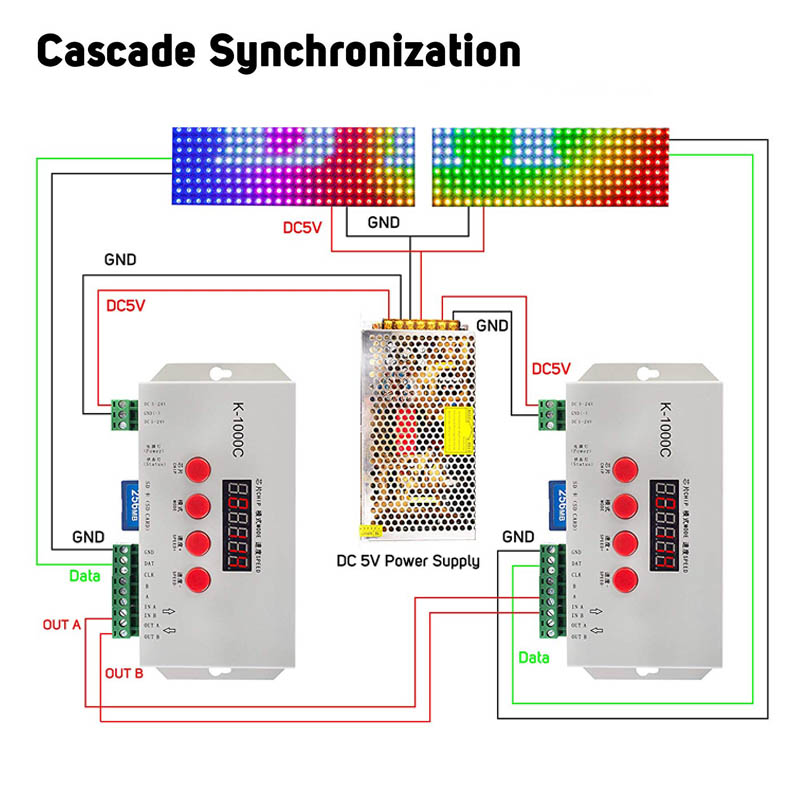

Multiple controllers can be work synchronously
Support almost every kind of one-wire or two-wires LED driver IC
Support setting pixel number and segment number, support up to 2048 pixels
DC5V~24V wide range working voltage, reverse power supply input protection
Support IC UCS1903 UCS1909 UCS1912 UCS2903 UCS2904 UCS2909 UCS2912 TM1803 TM1804 TM1809 TM1812 SM16703 SM16709 SM16712 SM16716 SM16726 WS2811 WS2812 WS2813 WS2815 WS2818 WS2801 INK1003 LX3203 LX1603 LX1103 LX1003 LX1203 GS8205 GS8206 SK6812 P9813 P9883 P9823 LPD6803 LPD1886 TM1913 TM1914 DMX
Instruction
Company software "LedEdit2017" is needed for programming led lighting efforts.
CHIP: Pressing this button to switch chip
MODE: Pressing this button to siwtch mode
Press "CHIP" then press "MODE", it will come to programmable mode
SPEED+: Speed up
SPEED-: Speed down
Press "SPEED+" and "SPEED-" at the same time, it will cone to automatic loop play mode
K-1000C WS2812B APA102C SK6812 WS2811 WS2801 Led Strip 2048 Pixels Controller DC5-24V Addressable Programmable Controller with SD Card
Introduction
For addressable or digital led strip, controller is a must to change the lighting modes. There's many different controller for magic led strip, including 3key Mini Controller, IR Controller, RF Controller, RF Music Controller, Bluetooth Controller, WiFi Controller, Bluetooth Music Controller, and other Addressable Controller.
Product Features
With computer software for editing lighting modes from files in SD card
Multiple controllers can be work synchronously
Support almost every kind of one-wire or two-wires LED driver IC
Support setting pixel number and segment number, support up to 2048 pixels
DC5V~24V wide range working voltage, reverse power supply input protection
Support IC UCS1903 UCS1909 UCS1912 UCS2903 UCS2904 UCS2909 UCS2912 TM1803 TM1804 TM1809 TM1812 SM16703 SM16709 SM16712 SM16716 SM16726 WS2811 WS2812 WS2813 WS2815 WS2818 WS2801 INK1003 LX3203 LX1603 LX1103 LX1003 LX1203 GS8205 GS8206 SK6812 P9813 P9883 P9823 LPD6803 LPD1886 TM1913 TM1914 DMX
Instruction
Company software "LedEdit2017" is needed for programming led lighting efforts.
CHIP: Pressing this button to switch chip
MODE: Pressing this button to siwtch mode
Press "CHIP" then press "MODE", it will come to programmable mode
SPEED+: Speed up
SPEED-: Speed down
Press "SPEED+" and "SPEED-" at the same time, it will cone to automatic loop play mode
