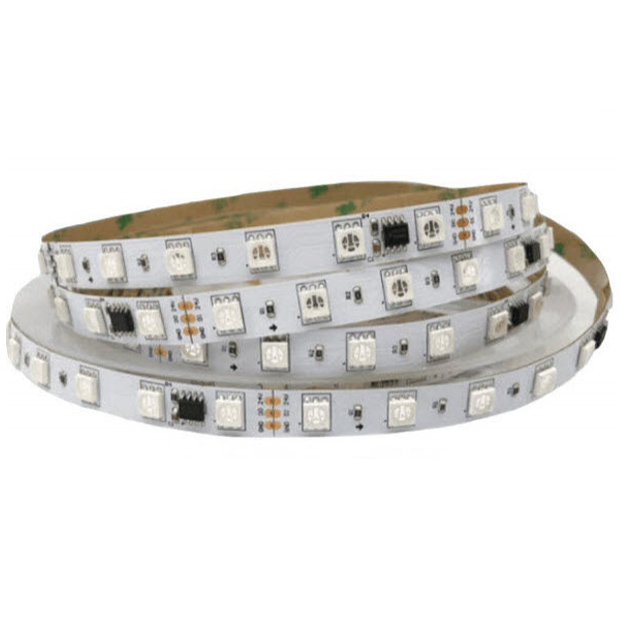

UCS1903 DC 24V 60LEDs/m Addressable Programmable RGB LED Strip Light

UCS1903 DC 24V 60LEDs/m Addressable Programmable RGB LED Strip Light

---

Introduction

Digital led strip light, sometimes refered as "addressable led light strip" or "programmable led tape light", is the magic choice for indoor and outdoor lighting projects. Compare with conventional rgb color changeable led strip light, digital led strip has full dream color and programmable function, which means you can address the color and brightness through IC. Epistar chip, brand led and 2oz pcb ensure the quality of flexible led strip lights. For IC type, we have WS2811, WS2812B, WS2813, WS2818, UCS1903, SK6812, CS8812, P943, APA102, CS2803, TM1914, DMX512, etc.

Product Features

• 3 Years Warranty

• External IC UCS1903

• 6LEDs Cuttable

• Addressable Full Color

• 3Pin JST SM Connector

• 120° Beam Angle


• Super High Brightness

• 3M Brand Adhesive Tape

Available Choice

60LEDs/m Addressable Led Strip

Available IP Rating

Comparison of Different IC Type

WS2811

External IC, 12V 3LEDs/unite, 3Pin (VCC DATA GND), No breakpoint transmisson

UCS1903

External IC, 12V 3LEDs/unit 24V 6LEDs/unit, 3Pin (VCC DATA GND), No breakpoint transmisson

WS2818

External IC, 12V 3LEDs/unit, 4Pin (VCC DATA1 DATA2 GND), Yes breakpoint transmisson

TM1914

External IC, 5V 1LEDs/unit 12V 3LEDs/unit 24V 6LEDs/unit, 4Pin (VCC DATA1 DATA2 GND), Yes breakpoint transmisson

WS2812B

Built-in IC, 5V 1LEDs/unit, 3Pin (VCC DATA GND), No breakpoint transmisson

SK6812

Built-in IC, 5V 1LEDs/unit 12V 3LEDs/unit 24V 6LEDs/unit, 3Pin (VCC DATA GND), No breakpoint transmisson

WS2813

Built-in IC, 5V 1LEDs/unit, 4Pin (VCC DATA1 DATA2 GND), Yes breakpoint transmisson

P943

Built-in IC, 5V 1LEDs/unit 12V 3LEDs/unit 24V 6LEDs/unit, 4Pin (VCC DATA1 DATA2 GND), Yes breakpoint transmisson

CS8812

Built-in IC, 12V 1LEDs/unit, 4Pin (VCC DATA1 DATA2 GND), Yes breakpoint transmisson

DMX512

External IC, 12V 3LEDs/unit 24V 6LEDs/unit, 5Pin (VCC DATA1 DATA2 ADD GND), Yes breakpoint transmisson

Applications

• Home Decorative Lighting

• Exhibition Hall Lighting

• Hotel Lobbies Lighting

• Bar Club Lighting

• Patio and Garden Lighting

• Architectural Buidling Lighting

• Automotive Lighting

• Car & Motorcycle Lighting

• Atmosphere Lighting

Why Choose Ledodm's led strip lights?

• 10+ Years Experience

  Ledodm focus on led strip lights for more than 10 years, during past years, we have produced many customized products according to customers' requirements. Welcome to inquiry any led strip which you need.

• Guaranteed Performance

  Produced with high quality led chip, pcb and resistor, led strips can be used for many high end projects and OEM products. After testing, our led strip light will dim to 70% of original brightness after using for 50,000 hours.

• Professional in LED Strip

  Ledodm is a preferred supplier for led strip light distributor, international lighting designers, building contractors and renowned architects from all over the world. We concern every development in led strip industry and pay close attention to every innovation, and we want share our knowledge and passion with as many people as possible. Our specialists are here to assist in your project’s development from imagination to realization.
