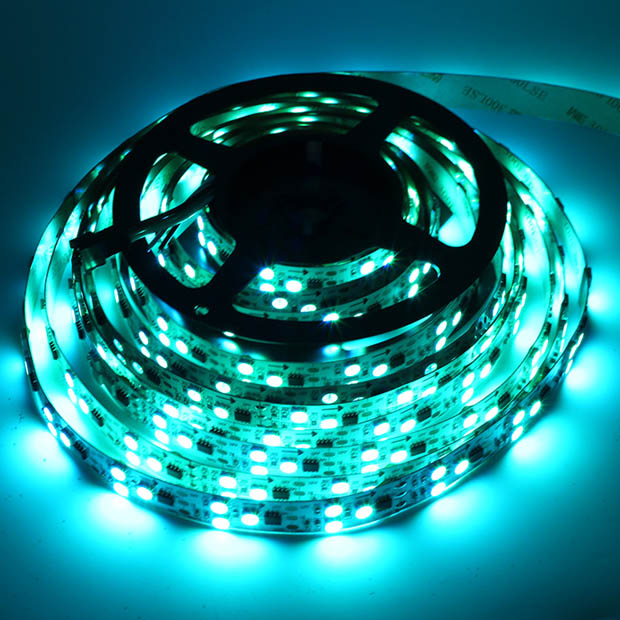

WS2811 UCS1903 DC 12V 90LEDs/m RGB Addressable Flexible LED Strip Light

  • SL-5050-WS2811P

  • DC 12V

  • SMD5050

  • 15mm

  • RGB

PCB Color:
LED QTY:
IC Type:
IP Rating:
Availability:

WS2811 UCS1903 DC 12V 90LEDs/m RGB Addressable Flexible LED Strip Light


addressable ws2811 led strip

Introduction

Addressable led strip light, sometimes called "digital led light strip" or "programmable led tape light", is the best solution for indoor and outdoor lighting projects. Compare with general rgb led strip, digital led strip has full dream color and program function, which means you can set the color and brightness through IC. Epistar chip, brand led and 2oz pcb ensure the quality of flexible led strip lights. For IC type, we have WS2811, WS2812B, WS2813, WS2818, UCS1903, SK6812, CS8812, P943, APA102, CS2803, TM1914, DMX512, etc.


Product Features

  • 3 Years Warranty

  • External IC WS2811

  • 3LEDs Cuttable

  • Addressable Full Color

  • 3Pin JST SM Connector

  • 120° Beam Angle

  • Super High Brightness

  • 3M Brand Adhesive Tape


Available Choice

90LEDs/m

60LEDs/m


Available IP Rating

ip grade


Comparison of Different IC Type

WS2811

External IC, 12V 3LEDs/unite, 3Pin (VCC DATA GND), No breakpoint transmisson

UCS1903

External IC, 12V 3LEDs/unit 24V 6LEDs/unit, 3Pin (VCC DATA GND), No breakpoint transmisson

WS2818

External IC, 12V 3LEDs/unit, 4Pin (VCC DATA1 DATA2 GND), Yes breakpoint transmisson

TM1914

External IC, 5V 1LEDs/unit 12V 3LEDs/unit 24V 6LEDs/unit, 4Pin (VCC DATA1 DATA2 GND), Yes breakpoint transmisson

WS2812B

Built-in IC, 5V 1LEDs/unit, 3Pin (VCC DATA GND), No breakpoint transmisson

SK6812

Built-in IC, 5V 1LEDs/unit 12V 3LEDs/unit 24V 6LEDs/unit, 3Pin (VCC DATA GND), No breakpoint transmisson

WS2813

Built-in IC, 5V 1LEDs/unit, 4Pin (VCC DATA1 DATA2 GND), Yes breakpoint transmisson

P943

Built-in IC, 5V 1LEDs/unit 12V 3LEDs/unit 24V 6LEDs/unit, 4Pin (VCC DATA1 DATA2 GND), Yes breakpoint transmisson

CS8812

Built-in IC, 12V 1LEDs/unit, 4Pin (VCC DATA1 DATA2 GND), Yes breakpoint transmisson

DMX512

External IC, 12V 3LEDs/unit 24V 6LEDs/unit, 5Pin (VCC DATA1 DATA2 ADD GND), Yes breakpoint transmisson


Applications

  • Home Decorative Lighting

  • Exhibition Hall Lighting

  • Hotel Lobbies Lighting

  • Bar Club Lighting

  • Patio and Garden Lighting

  • Architectural Buidling Lighting

  • Automotive Lighting

  • Car & Motorcycle Lighting

  • Atmosphere Lighting


Why Choose Ledodm's led strip lights?

  • 10+ Years Experience

    Ledodm focus on led strip lights for more than 10 years, during past years, we have produced many customized products according to customers' requirements. Welcome to inquiry any led strip which you need.

  • Guaranteed Performance

    Produced with high quality led chip, pcb and resistor, led strips can be used for many high end projects and OEM products. After testing, our led strip light will dim to 70% of original brightness after using for 50,000 hours.

  • Professional in LED Strip

    Ledodm is a preferred supplier for led strip light distributor, international lighting designers, building contractors and renowned architects from all over the world. We concern every development in led strip industry and pay close attention to every innovation, and we want share our knowledge and passion with as many people as possible. Our specialists are here to assist in your project’s development from imagination to realization.

WS2811 UCS1903 DC 12V 90LEDs/m RGB Addressable Flexible LED Strip Light


  • Epistar Chip & Brand LED

  • Flexible Double-sided PCB

  • Programmable Strip Light

  • External WS2811 IC

  • 3Pin JST-SM Connector (12V DI GND)

Model No. LED Type IC Type
Voltage PCB Width Color Power/M
SL-5050-90WS2811P 90leds/m 5050 30pcs/m WS2811 12V 15mm RGB 24W
SL-5050-60WS2811P 60leds/m 5050 20pcs/m WS2811 12V 15mm RGB 16W


WS2811 UCS1903 DC 12V 90LEDs/m RGB Addressable Flexible LED Strip Light


End Wire for Digital LED Strip Light

three wire for led strip

End Wire


jst connector for led strip

SM Male Femal Connector


3pin connector for led strip light

DC Male Femal Connector



Controller for LED Strip Light

rf controller for led strip

RF Controller


bluetooth controller for led strip

Bluetooth Controller


t1000 controller

T1000 Controller





WS2811 UCS1903 DC 12V 90LEDs/m RGB Addressable Flexible LED Strip Light


LED Strip Lights FAQ:


  • Q: What is addressable led strip?

    Addressable means the led strip can be programmed through the IC of the led strip.


  • Q: What is breakpoint transmission led strip?

    The signal still can continue even if one led chip can not work.


  • Q: What is individually addressable led strip?

    In an individually addressable LED strip, the LEDs each have a companion IC to give them independence and intelligence.


  • Q: What is the product warranty?

    The warranty on led strip lights ranges from 2 to 5 years which depends on the product material requested.


  • Q: What is the product lifespan?

    Our led tape lights have been strictly tested and have an expected lifespan of 50,000hours before dropping to 70% luminosity.


  • Q: How do I install led strip?

    Choose the according power supply and controller, then connect led strip with controller and power supply, finally you can light it on.


  • Q: What does IP meam?

    This is a rating system that defines the ability of led strip to be able to work in different environments. It is a measurement of the protection an item will have against solid objects and liquids. An IP rating is comprised of 2 numbers, the first one refers to the protection against solid objects and the second one refers to protection against liquids.


  • Q: How do I put waterproof led strip on?

     All of our outdoor-rated strip lights come with 3M adhesive tape on the back and mounting brackets in the anti-static bag.


More Information on LED Strip Lights:

90% of our customers found this page useful in selecting their LED strips
