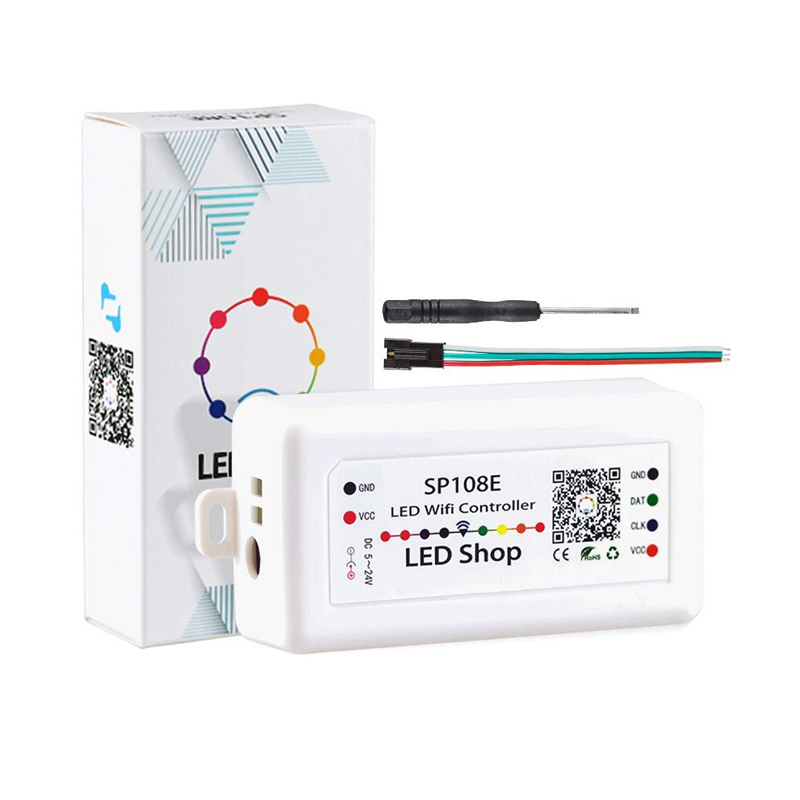

SP108E WiFi LED Controller for Addressable Digital Dream Color RGB LED Strip Light

  • SP108E
  • 5V~24V
Pixel Number:
Remote Distance:
Size:
Weight:

SP108E WiFi LED Controller for Addressable Digital Dream Color RGB LED Strip Light


ws2811 controller


Introduction

For addressable or digital led strip, controller is a must to change the lighting modes. There's many different controller for magic led strip, including 3key Mini Controller, IR Controller, RF Controller, RF Music Controller, Bluetooth Controller, WiFi Controller, Bluetooth Music Controller, and other Addressable Controller.


Product Features

  • Long distance APP remote control via WiFi

  • Support routing mode (AP) and LAN connection mode (STA)

  • Support almost every kind of one-wire or two-wires LED driver IC

  • Support setting pixel number and segment number, support up to 2048 pixels

  • With 180 kinds of led strip effects and 8 kinds of color adjustable lighting modes

  • Creatively using from-imag-to-effect method for user to DIY any lighting effect

  • DC5V~24V wide range working voltage, reverse power supply input protection

  • Support IC SM16703 UCS1903 WS2811 WS2812 WS2801 WS2813 WS2818 SK6812 SK6812RGBW TM1804 TM1914 TM1814 TM1913 LPD6803 LPD8806 SK9822 GS8206 GS8208 TX1812 TX1813 INK1003 APA102 APA105 DMX512 P9813 P943S P9411 P9413 P9414 P9412


Specification

Working temperature: -20℃~60℃

Working Voltage: DC5V~24V

Working Current: 20mA~130mA

Remote distance: 30 Meters

Product size: 85mm*45mm*22mm

Product weight: 40g

Certificates: CE, RoHS


Instruction

Requires IOS version 10.0 or later; Requires Android OS version 4.4 or later.

Search "LED Shop" in App Store or Google Play or scan below QR code to download and install APP.

qq

AP(Access Point) mode: Controller and Phone connect directly, controller works as an access point.

Connect steps:

1.When the device is not connected to any WIFI network, power on the controller and wait for 20s

and then controller will switch into AP mode ;

2.In the WIFI setting page,find and connect the controller(named like SP108E_xxx, the default pin code is 12345678),

3.Open the LED Shop App ,then the controller will be showed on the device list;


STA(Station) mode: Controller and phone are in one same WIFI network, in this network, users can operate the controller smoothly.

Connect steps:

1.When the device is not connected to any WIFI network,power on the controller,

controller will be remain in Wait-For-Connet mode for 20 seconds;

2.Make sure that your phone is connected to a WIFI network, Open LED Shop APP, pressing the Add Device button,

input the WIFI pin code, then press the OK to confirm and wait for the configure processing finish;

3.When controller successfully enter the WIFI network, it will be showed on the device list;

4.User can select the controller and remove it out of the network by pressing the Remove Device button,

then the controller will switch into AP mode.

app controller for led strip

LED Controller for Addressable Digital Magic Progammable LED Strip Light


Model

NO.

Voltage

Control

Method

Control

Pixels

Built-in

Modes

DIY Color

Mode

Music

Activiated

Programmable

SP002E

sp002e

DC 5~24V

Mini 3Key

Controller

600 68 x x x

SP104E

sp104e

DC 5~24V

17Key RF

Controller

2048 300 x x x

SP105E

sp105e

DC 5~24V

App via

Bluetooth

2048 200 x x x

SP107E

sp107e

DC 5~24V

App via

Bluetooth

960 30+18+180 x x

SP108E

sp108e

DC 5~24V

App via

WiFi

2048 180 x x

SP110E

sp110e

DC 5~12V

App via

 Bluetooth

1024 120 x x x

SP301E

sp301e

DC 5~24V

Company

 Software

2048 99 x

K-1000C

K-1000C

DC 5~24V

Company

 Software

2048 Infinite x
