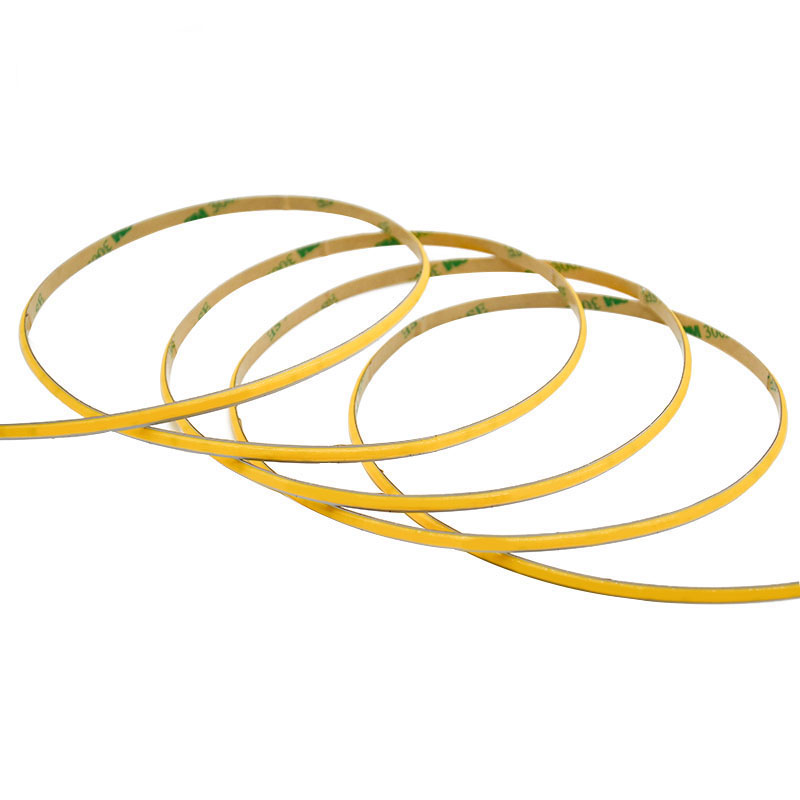

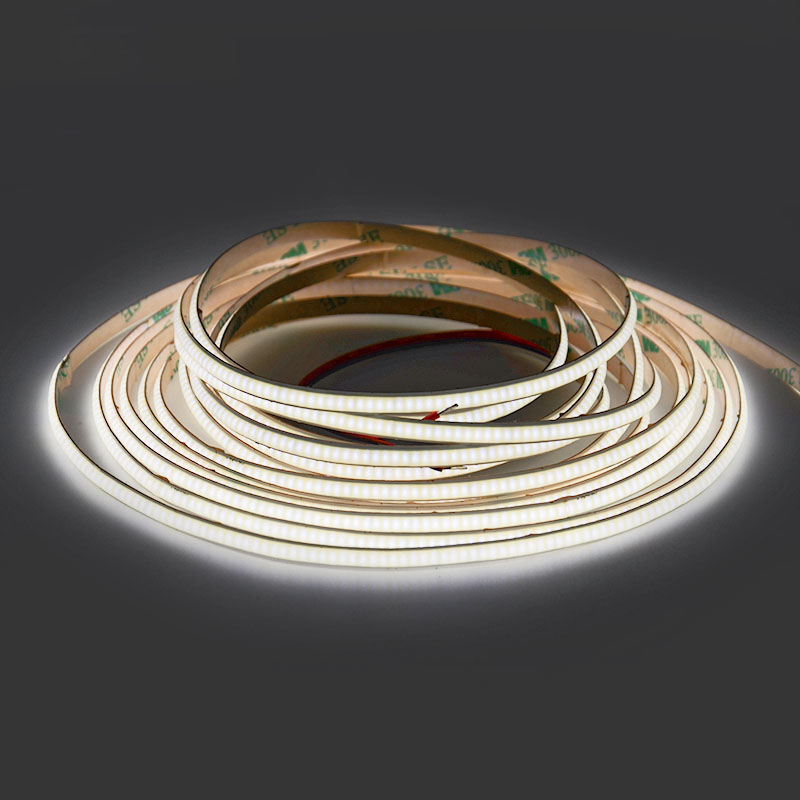

Ultra Thin 4mm 5mm Width Flexible 480Chips/m COB LED Strip Lights 12V 24V FOB FCOB 2700K 3000K 4000K 6500K LED Light Strip
Introduction
COB is the abbreviation of the Chip On Board. That means is to directly package the chip on the circuit board. It is a kind of LED integrated package technology, the newest innovation in 2019. COB LED Strip Lights, which called cob led ligt tape or fob led strip lights, has high dentisy chips and prodvides a completely uniform light line without any light dot or dark area. It's very different from normal smd led strip light, it only has chip inside, that's why cob led strip can be single row with more than 480chips.
Product Features
No Dot or Light Spot
2oz Flexible PCB
3 Years Warranty
High CRI 90+
Fully Dimmable
180° Beam Angle
Small Bending Angle
High Lumen Max 110lm/w
3M Brand Adhesive Tape
Available Type
| Model No. | SL-COB-480E4 | SL-COB-480E5 | SL-COB-480E8 | SL-COB-480E10 |
| LED Light Source | LED Chip with COB Package | |||
| LED Chip QTY | 480Chips/m | 480Chips/m | 480Chips/m | 480Chips/m |
| Voltage | 12V/24V | 12V/24V | 12V/24V | 12V/24V |
| Power | 6W | 7W | 9W | 12W |
| CRI | 90 |
|||
| PCB Thickness | 2oz Double-sided FPCB | |||
| PCB Width | 4mm | 5mm |
8mm | 10mm |
| PCB Color | White |
|||
| Beam Angle | 180° |
|||
| Tape | 3M 300LSE Tape on the Back | |||
| Length per Roll | 16.4′ (5M) or 32.8′(10M) | |||
| Length of Cuttable | 25mm/50mm | 25mm/50mm | 25mm/50mm | 25mm/50mm |
Available Colors
 Pure White COB FOB LED Strip |
 Warm White COB FOB LED Strip |
 Red COB FOB LED Strip |
 Green COB FOB LED Strip |
 Blue COB FOB LED Strip |
Optional IP Ratings
 Heat Shrinkable Tube |
 Silicone Tube |
 Silicone Extrusion |
Advantage
a. Invisible LED v.s Visible LED
b. 180° Beam Angle v.s 120° Beam Angle
c. Density chips on PCB v.s 120LEDs/m 15mm PCB
Applications
Home Decorative Lighting
Cabinets and Shelving
Hotel Lobbies Lighting
Shop Display Lighting
Patio and Garden Lighting
Architectural Buidling Lighting
Why Choose Ledodm's COB LED Strips?
High Lumen Chip
Lumen parameter is the measurement of led strip light brightness. For cob led strip lights, the chip size is 10*30mm, you can compare the lumen output with others on the market. Doing so, you'll find that our LEDs carries the brightest lumen among led strips in their class.
2oz Flexible PCB
As for cob led light strip, the main key is chip and pcb. 2oz pcb thickness is better than 1oz fleixble pcb, and it has good heat dissipation and long lifespan, that's why we can assure 3 years warranty for new product.
Professional in LED Strip
Ledodm is a preferred supplier for led tape light distributor, international lighting designers, building contractors and renowned architects from all over the world. We concern every development in led strip industry and pay close attention to every innovation, and we want share our knowledge and passion with as many people as possible. Our specialists are here to assist in your project’s development from imagination to realization.
