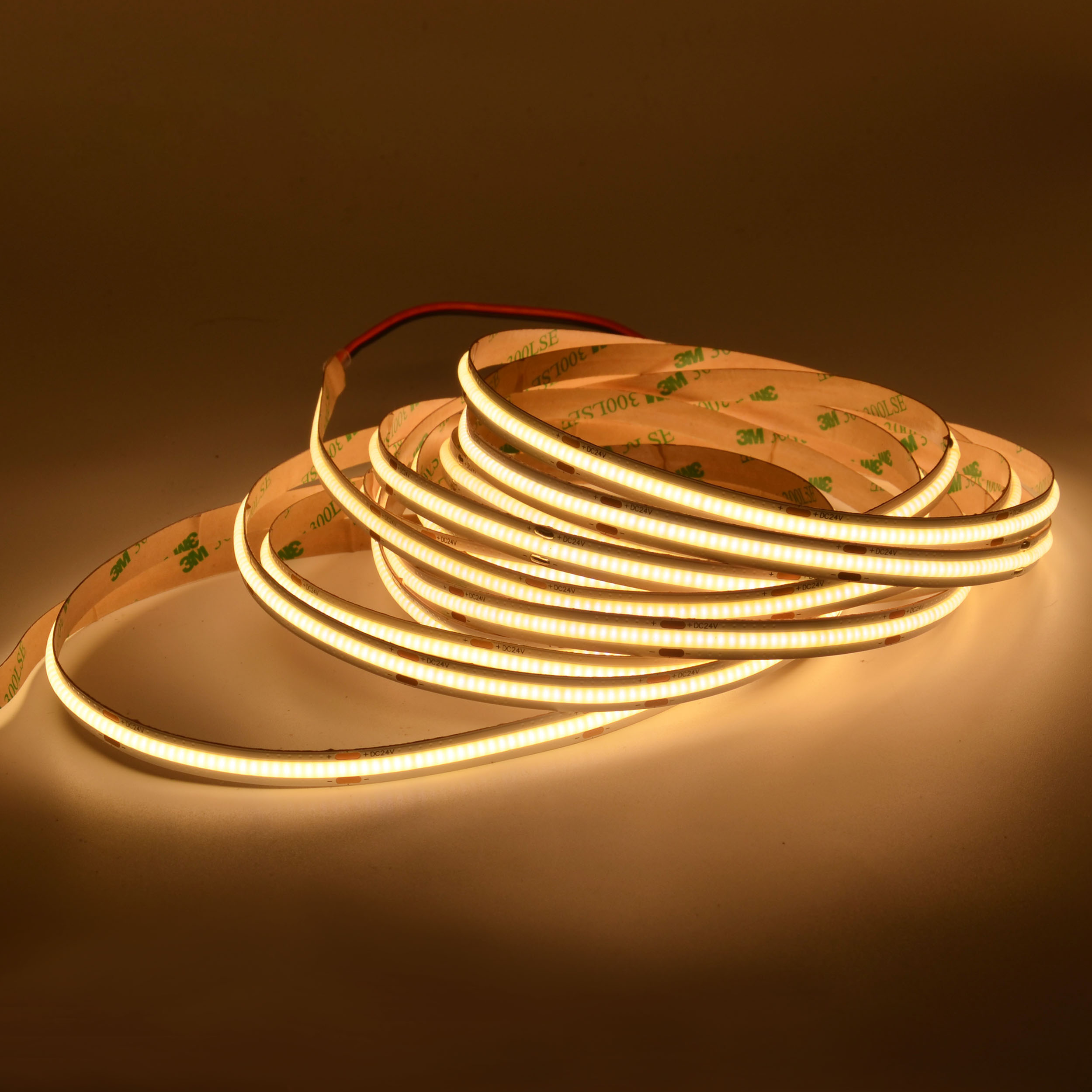

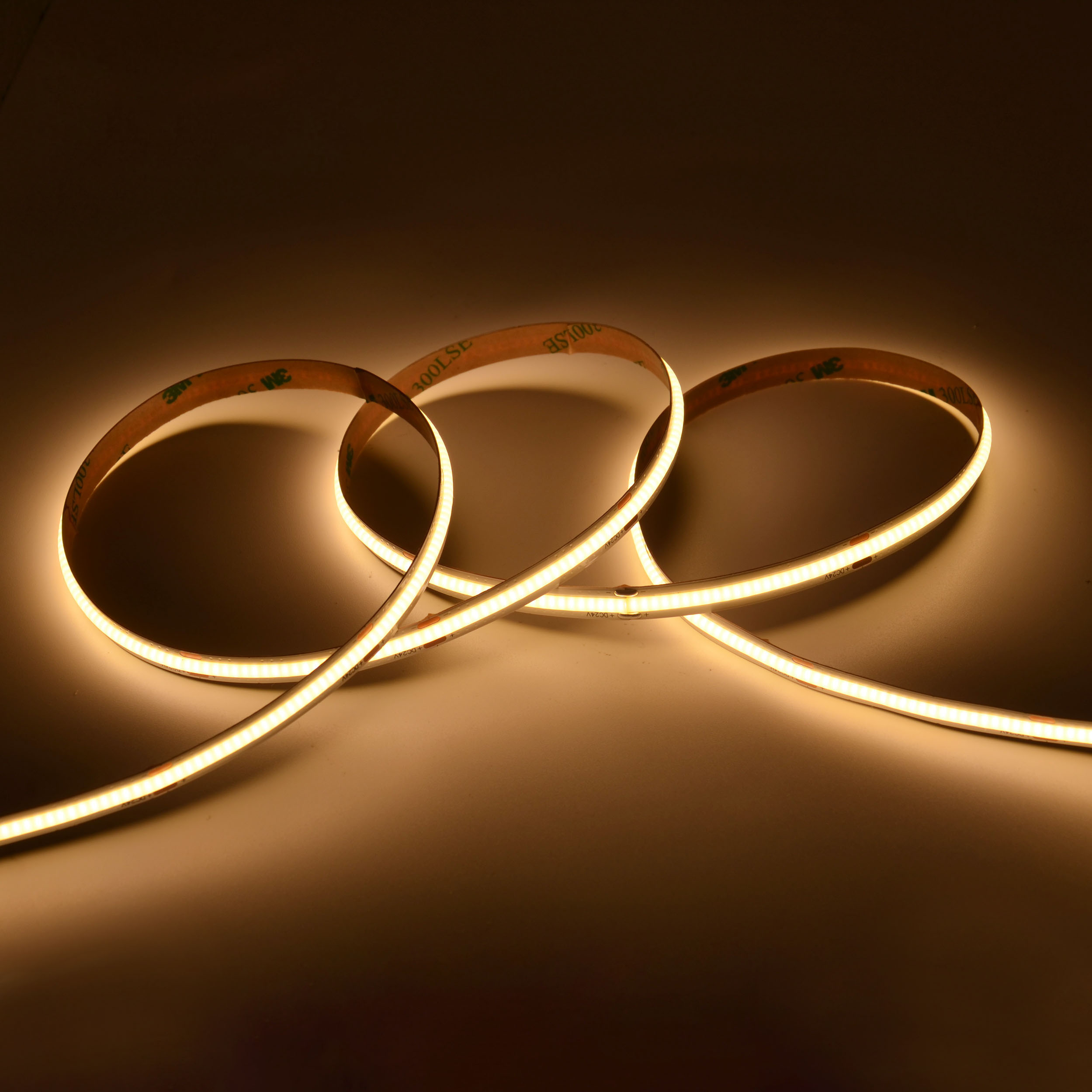

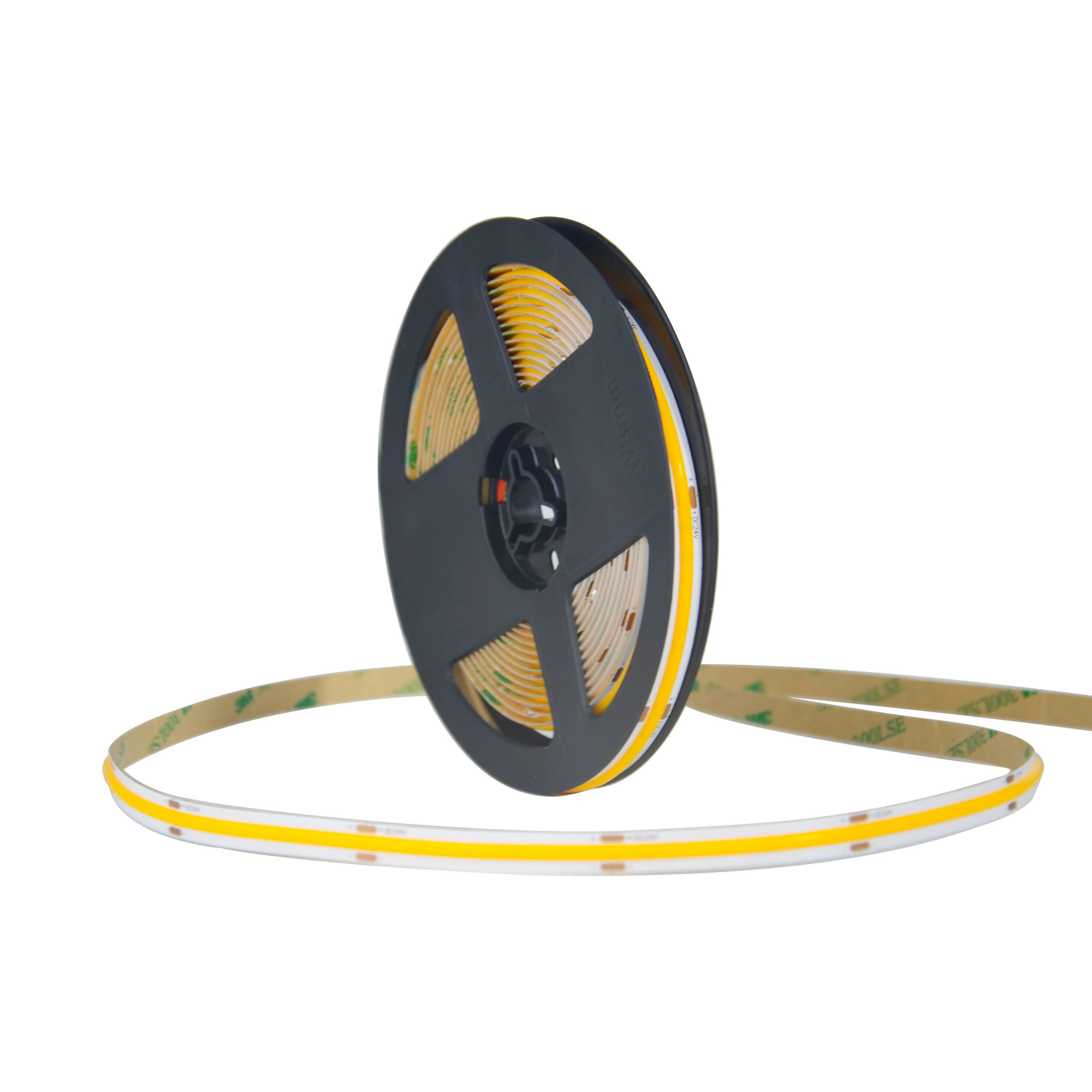

CRI90 Flexible 480Chips/m COB LED Strip Lights 12V 24V FCOB 2700K 3000K 4000K 6500K LED Light Strip

  • SL-COB-480E8/10

  • COB

  • 480Chips/m

PCB Width:
IP Rating:

CRI90 Flexible 480Chips/m COB LED Strip Lights 12V 24V FCOB 2700K 3000K 4000K 6500K LED Light Strip

cob led strip drawing


COB (Chip on Board) LED strip lights, alternatively referred to as COB LED light tapes or FOB LED strip lights, represent a distinct category of LED lighting where numerous LED chips are assembled together to form a singular light module, providing a more uniform light output compared to other types of LED strips that have individual LED components spaced apart from one another. COB LED Strip Lights are desinged with high dentisy chips and prodvides a completely uniform light line without any light dot or dark area. It's very different from normal smd led strip light, it only has chip inside, that's why cob led strip can be single row with more than 480chips.

Product Features

  • High Density LEDs: COB LED strips have a high density of LED chips, which offers a more uniform and seamless light output.

  • Brightness: Due to the high density of LEDs, COB strips can provide high levels of brightness.

  • Heat Dissipation: As many LEDs are packed closely together, efficient heat dissipation is necessary to maintain the lifespan of the strip.

  • Flexible Installation: Like other LED strips, COB LED strips can be flexible, making them suitable for various applications, including decorative lighting, under-cabinet lighting, and more.

  • Energy Efficiency: COB LED strips are energy-efficient, consuming less power compared to other lighting options for the same amount of light output.

Available Type

Model No. SL-COB-480E4 SL-COB-480E5 SL-COB-480E8 SL-COB-480E10
LED Light Source LED Chip with COB Package
LED Chip QTY 480Chips/m 480Chips/m 480Chips/m 480Chips/m
Voltage 12V/24V 12V/24V 12V/24V 12V/24V
Power 6W 7W 9W 12W
CRI 90
PCB Thickness 2oz Double-sided FPCB
PCB Width 4mm


8mm 10mm
PCB Color White
Beam Angle 180°
Tape 3M 300LSE Tape on the Back
Length per Roll 16.4′ (5M) or 32.8′(10M)
Length of Cuttable 25mm/50mm 25mm/50mm 25mm/50mm 25mm/50mm

Available Colors

cob led strip lights

Pure White COB FOB LED Strip

flexible cob led strip

Warm White COB FOB LED Strip

red cob led strip


green cob led strip

Green COB FOB LED Strip

blue cob led strip

Blue COB FOB LED Strip

Optional IP Ratings

ip65 cob led strip

Heat Shrinkable Tube

ip66 cob led strip

Silicone Tube

ip68 cob led strip

Silicone Extrusion


a. Invisible LED v.s Visible LED

b. 180° Beam Angle v.s 120° Beam Angle

c. Density chips on PCB v.s 120LEDs/m 15mm PCB


Accent Lighting: Due to their smooth light output, they are excellent for accent lighting in showcases, under cabinets, or around mirrors.

Backlighting: They can be used as backlighting for signs, televisions, or displays.

General Lighting: Due to their high brightness, they can also be used for general lighting purposes in residential and commercial spaces.

Outdoor Lighting: If you choose waterproof COB LED strips, they can be used for outdoor lighting applications as well.

Why Choose Ledodm's COB LED Strips?

  • High Lumen Chip

    Lumen parameter is the measurement of led strip light brightness. For cob led strip lights, the chip size is 10*30mm, you can compare the lumen output with others on the market. Doing so, you'll find that our LEDs carries the brightest lumen among led strips in their class.

  • 2oz Flexible PCB

    As for cob led light strip, the main key is chip and pcb. 2oz pcb thickness is better than 1oz fleixble pcb, and it has good heat dissipation and long lifespan, that's why we can assure 3 years warranty for new product.

  • Professional in LED Strip

    Ledodm is a preferred supplier for led tape light distributor, international lighting designers, building contractors and renowned architects from all over the world. We concern every development in led strip industry and pay close attention to every innovation, and we want share our knowledge and passion with as many people as possible. Our specialists are here to assist in your project’s development from imagination to realization.

  • High-Quality Manufacturing & Innovative Technology

    Ledodm is known for their high-quality manufacturing processes which guarantee durable and reliable products. Their COB LED strips are built with premium materials, ensuring a long-lasting performance. Ledodm's COB LED strips employ cutting-edge technology that results in a higher chip density and a uniform light output, eliminating issues such as light dots or dark spots that are commonly found in traditional SMD LED strips.

  • Excellent Customer Support & Positive Reviews and Testimonials

    Ledodm is known for their excellent customer support, providing assistance throughout the purchase process, and offering guidance and help in case of any issues or concerns, ensuring a satisfying customer experience. The brand has received positive reviews and testimonials from customers, attesting to the quality and performance of their COB LED strips, which can provide potential buyers with confidence in their purchase.

CRI90 Flexible 480Chips/m COB LED Strip Lights 12V 24V FCOB 2700K 3000K 4000K 6500K LED Light Strip

COB LED strip lights bring a plethora of advantages to the table, especially when considering their performance, energy efficiency, and the uniformity of light they provide. Here are several advantages of using COB LED strip lights:

1. Uniform Light Distribution

COB LED strips are known for their seamless and uniform light distribution. The high-density arrangement of LED chips eliminates dark spots and provides a continuous line of light, enhancing the aesthetics of any space they are installed in.

2. High Brightness Levels

Due to the compact arrangement of LEDs on the strip, COB LED lights can achieve higher levels of brightness compared to traditional LED strips. This makes them suitable for various applications, including task lighting and ambient lighting.

3. Energy-Efficiency

COB LED strips are incredibly energy-efficient. They provide high brightness levels while consuming less power, helping to reduce electricity bills and minimize the carbon footprint.

4. Slim and Flexible Design

COB LED strips are slim and flexible, allowing for easy installation in a wide variety of locations, including narrow or confined spaces. Their flexible design enables creative lighting solutions and can be adapted to various shapes and designs.

5. Better Heat Dissipation

Thanks to the integrated design of the COB LED chips on the board, these strips generally offer better heat dissipation compared to other LED strips, which can prolong the lifespan of the strip lights.

6. Durability

COB LED strips are known for their durability. The robust manufacturing process and high-quality materials used in their production ensure that they can withstand wear and tear, offering a longer service life.

7. Easy to Customize

COB LED strips can be easily customized to fit various applications. They can be cut at designated points and reconnected as necessary, allowing for a bespoke lighting solution that meets specific requirements.

8. Wide Range of Color Temperatures

COB LED strips are available in a wide range of color temperatures, allowing users to choose the right lighting mood for different environments, whether it's warm, neutral, or cool lighting.

9. Dimmable

Many COB LED strips offer dimmable features, which allow users to adjust the brightness level according to their preferences and the requirements of the space, creating a versatile lighting solution.

10. Application Versatility

COB LED strips are versatile and can be used in numerous applications, including residential lighting, commercial lighting, accent lighting, and outdoor lighting, providing flexible solutions for different lighting projects.

By considering these advantages, it's clear that COB LED strips stand out as a superior choice for a wide range of lighting applications, offering both functional and aesthetic benefits.

Model No. COB Chip Voltage Power PCB Width Color
SL-COB-480E4 480Chips/m 12V/24V 6W/m 4mm





SL-COB-480E5 480Chips/m 12V/24V 7W/m 5mm
SL-COB-480E8 480Chips/m 12V/24V 9W/m 8mm
SL-COB-480E10 480Chips/m 12V/24V 12W/m 10mm
SL-COB-512E8 512Chips/m
24V 10W/m 8mm
SL-COB-512E10 512Chips/m


14W/m 10mm
SL-COB-608CCT 608Chips/m 12V/24V 22W/m 10mm 2700-6500K
SL-COB-450RGB 450Chips/m 12V 15W/m 10mm RGB
SL-COB-480RGB 480Chips/m 24V 15W/m 10mm RGB
SL-COB-810RGB 810Chips/m 12V 15W/m 10mm RGB
SL-COB-840RGB 840Chips/m 24V 15W/m 10mm RGB
SL-COB-896RGBW 896Chips/m 24V 20W/m 12mm RGBW
SL-COB-840RGBWW 840Chips/m 24V 25W/m 12mm RGBCCT


630Chips/m 12V/24V 14W/m 12mm AddressableRGB

cob fob led strip

CRI90 Flexible 480Chips/m COB LED Strip Lights 12V 24V FCOB 2700K 3000K 4000K 6500K LED Light Strip

End Wire for COB LED Strip Light

red and black wire for led strip

Black and Red Wire

sm male female connector for led strip

SM Male Femal Connector

dc connector for led strip light

DC Male Femal Connector

Easy Connector for COB FOB LED Strip Light

cob led strip connector

COB Connector

cob led strip connector wire

Connector with 150mm Wire

cob led strip pcb connector

Double Head Connector (150mm)

cob led strip L connector

L Connector

cob led strip T connector

T Connector


More Choice

CRI90 Flexible 480Chips/m COB LED Strip Lights 12V 24V FCOB 2700K 3000K 4000K 6500K LED Light Strip

COB LED Strip Light FAQ:

  • Q: What is the cob led tape light?

    The COB (Chip on Board) LED tape light is a kind of lighting strip where multiple LED chips are mounted directly onto a flexible or sometimes rigid substrate, forming a single module. This construction technique allows for a high-density arrangement of LEDs, which helps in providing a more uniform and seamless line of light.

  • Q: What is the cob led strip lifespan?

    Our COB LED strip lights undergo rigorous testing and are proven to have an impressive lifespan of 50,000 hours before their brightness diminishes to 70% of the original luminosity. This equates to a lifespan of over 10 years if utilized for 12 hours daily.

  • Q: What is cob led strip color temperature?

    Most white lights fall in a spectrum between 1800K and 6500K, measured in Kelvins (K). When dropping below 3000K, the light is noticeably warmer. When rising above 6500K, the lights have a blue-ish tint and cooler tone.

  • Q: What is product lumen?

    This is one way we can measure light output, the more lumen, the higher brightness. For 5050 smd led, we have 16-18lm, 18-20lm, 20-22lm and 22-24lm for led strip lights.

  • Q: What does IP meam?

    This is a rating system that defines the ability of led strip to be able to work in different environments. It is a measurement of the protection an item will have against solid objects and liquids. An IP rating is comprised of 2 numbers, the first one refers to the protection against solid objects and the second one refers to protection against liquids.

  • Q: What is CRI?

    CRI, or Color Rendering Index, is a quantitative measure of the ability of a light source to accurately reveal the colors of various objects in comparison to a natural light source, like sunlight. The CRI value ranges from 0 to 100, with higher values indicating that the light source can represent colors more faithfully and naturally. A high CRI is particularly beneficial in environments where color differentiation is critical, such as art studios, retail stores, photography studios, and the like. Generally, a CRI value of 80 or above is considered good, and a value of 90 or above is considered excellent for most residential and commercial lighting applications. It helps in enhancing the vibrant and true colors of the surroundings or objects being illuminated.
