Flexible COB LED Strip Light with High Lumen and Invisible Light Dot or Spot

  • SL-COB-528BL

  • 528Chips/m

  • 10mm

  • 16W/m

Voltage:
Color:
CRI:
IP Rating:
Availability:

Flexible COB LED Strip Light with High Lumen and Invisible Light Dot or Spot


cob led strip

Introduction

COB LED Strip Lights, which called cob led ligt tape, is the newest innovation in 2019. It's high dentisy chips and prodvides a completely uniform light line without any light dot or dark area. Pure White, Warm White, Red, Green, Blue are all available for choice. If you use it with aluminum profile, you can choose 22w/m. If you use it without aluminum profile, 16w/m is recommended.


Product Features

  • No Dot or Light Spot

  • 3oz Flexible PCB

  • 3 Years Warranty

  • High CRI 80+

  • Fully Dimmable

  • 180° Beam Angle

  • High Lumen Max 2000lm

  • 3M Brand Adhesive Tape

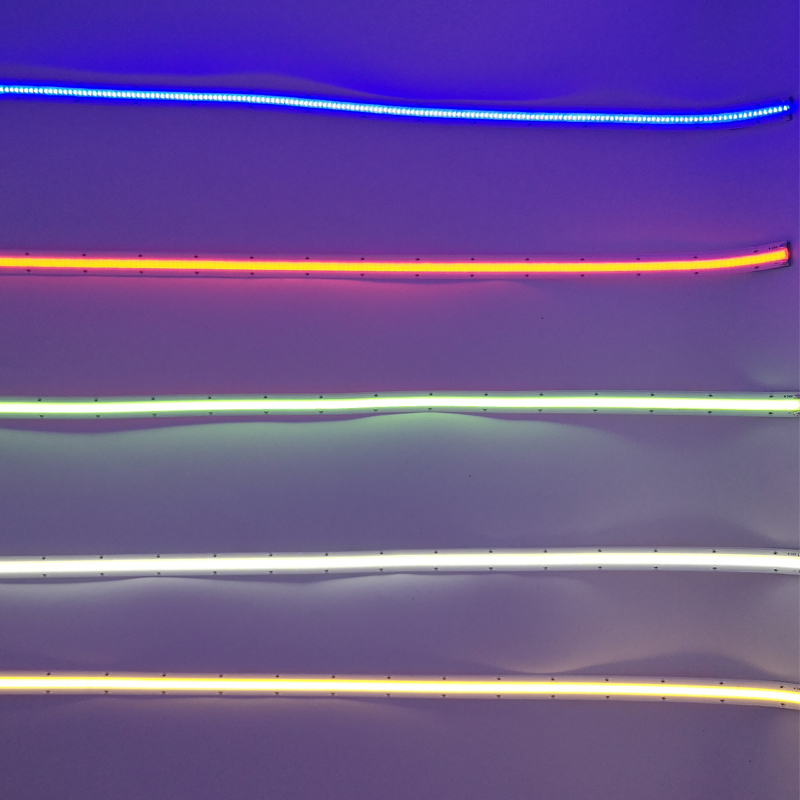

Available Colors

cob led strip lights

Pure White COB LED Strip


flexible cob led strip

Warm White COB LED Strip


cob led tape

Red


cob led light strip

Green


cob strip light

Blue



Advantage

a. Invisible LED v.s Visible LED

b. 180° Beam Angle v.s 120° Beam Angle

c. 528chips/m 10mm PCB v.s 120LEDs/m 15mm PCB


Applications

  • Home Decorative Lighting

  • Cabinets and Shelving

  • Hotel Lobbies Lighting

  • Shop Display Lighting

  • Patio and Garden Lighting

  • Architectural Buidling Lighting



Why Choose Ledodm's led strip lights?

  • High Lumen Chip

    Lumen parameter is the measurement of led strip light brightness. For cob led strip lights, the chip size is 10*30mm, you can compare the lumen output with others on the market. Doing so, you'll find that our LEDs carries the brightest lumen among led strips in their class.

  • 3oz Flexible PCB

    As for cob led light strip, the main key is chip and pcb. 3oz pcb thickness is better than 2oz and 1oz fleixble pcb, and it has good heat dissipation and long lifespan, that's why we can assure 3 years warranty for new product.

  • Professional in LED Strip

    Ledodm is a preferred supplier for led tape light distributor, international lighting designers, building contractors and renowned architects from all over the world. We concern every development in led strip industry and pay close attention to every innovation, and we want share our knowledge and passion with as many people as possible. Our specialists are here to assist in your project’s development from imagination to realization.

Flexible COB LED Strip Light with High Lumen and Invisible Light Dot or Spot


  • Completely smooth and even light spread

  • High density 528chips/m led strip lights

  • Long lifespan, more than 50000hours

  • 3oz Flexible PCB, better heat dissipation

  • Widely used for indoor and outdoor lighting

Model No. QTY/M Voltage PCB Width Color Lumen/M Power/M CRI
SL-COB-528PW 528Chips/m 24V 10mm 6000-6500K 2000LM 16W 80 / 90
SL-COB-528WW 528Chips/m 24V 10mm 2700-3200K 1800LM 16W 80 / 90
SL-COB-528RL 528Chips/m 24V 10mm Red 500LM 16W 80 / 90
SL-COB-528GL 528Chips/m 24V 10mm Green 2200LM 16W 80 / 90
SL-COB-528BL 528Chips/m 24V 10mm Blue 400LM 16W 80 / 90


Flexible COB LED Strip Light with High Lumen and Invisible Light Dot or Spot


End Wire for COB LED Strip Light

red and black wire for led strip

Black and Red Wire


sm male female connector for led strip

SM Male Femal Connector


dc connector for led strip light

DC Male Femal Connector



Connector for 10mm LED Strip Light

connector for ip20 led strip

2Pin Connector


connector for 5050 led strip

2Pin Connector with 150mm Wire


connector for two led strip light

2Pin Double Head Connector (150mm)

L Connector for led strip light

L Connector


T Connector for led strip light

T Connector


x connector for led strip light

X Connector


Flexible COB LED Strip Light with High Lumen and Invisible Light Dot or Spot


FOB LED Strip Light FAQ:


  • Q: What is the cob led tape light?

    Cob led strip lights is very diffrent from smd led strip, you canot see visible led when it's light on, there's no necessary to use plastic cover to make invisible led.


  • Q: What is the product lifespan?

    Our led tape lights have been strictly tested and have an expected lifespan of 50,000hours before dropping to 70% luminosity. It means using 12hours per day, the lights would last more than 10 years.


  • Q: What is color temperature?

    Most white lights fall in a spectrum between 1800K and 6500K, measured in Kelvins (K). When dropping below 3000K, the light is noticeably warmer. When rising above 6500K, the lights have a blue-ish tint and cooler tone.


  • Q: What is product lumen?

    This is one way we can measure light output, the more lumen, the higher brightness. For 5050 smd led, we have 16-18lm, 18-20lm, 20-22lm and 22-24lm for led strip lights.


  • Q: What does IP meam?

    This is a rating system that defines the ability of led strip to be able to work in different environments. It is a measurement of the protection an item will have against solid objects and liquids. An IP rating is comprised of 2 numbers, the first one refers to the protection against solid objects and the second one refers to protection against liquids.


  • Q: What is CRI?

    Color Rendering Index (CRI) is the measurement of how colors look under a light source when compared with sunlight. The index is measured from 0-100, with a perfect 100 indicating that colors under the light source appear the same as they would under natural sunlight.
