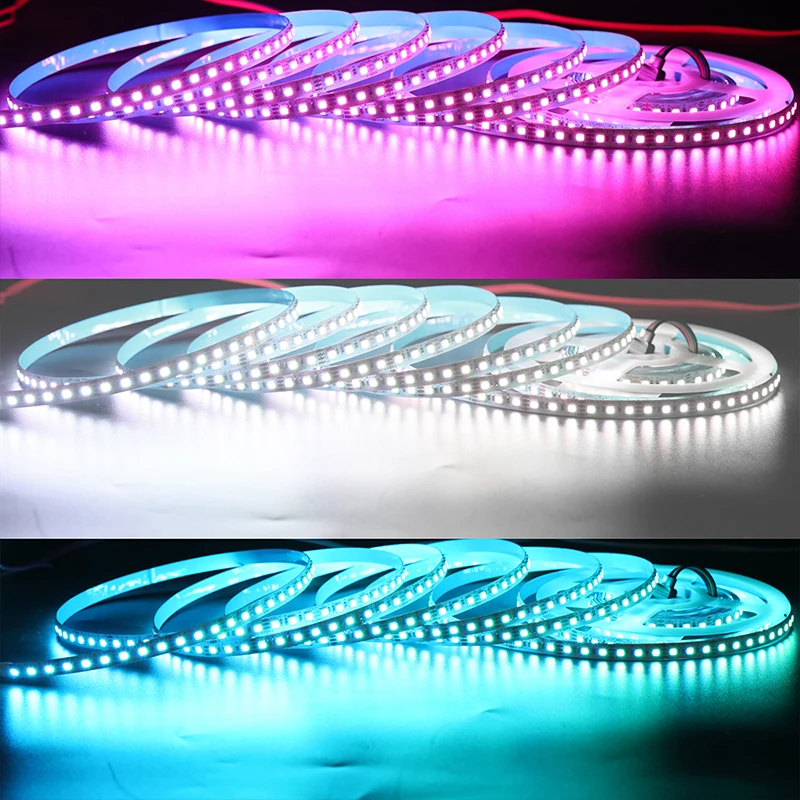

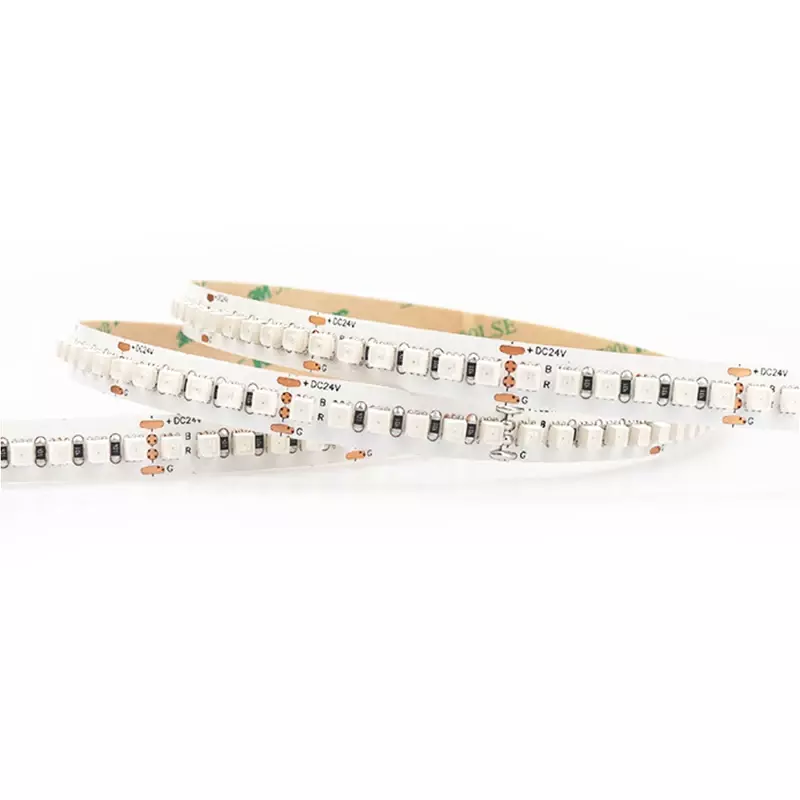

SMD3838 RGB 168leds/m 6mm 8mm 10mm 14w/m LED Tape Colorful DC24V LED Strip Light

SMD3838 RGB 168leds/m 6mm 8mm 10mm 14w/m LED Tape Colorful DC24V LED Strip Light

Introduction

New SMD3838 RGB LED size is 38*38*1.1mm, is smaler and thinner. Compared with other RGB LED, it can replace SMD5050 and SMD4040. SMD3838 RGB LED, has 3 led diodes (red, blue, green) in one housing (sometimes called tri-chips), which can instead ofthemost popular type SMD5050 in the market. Designed with small size, it can be high density rgb led strip light, max led quantity is240leds/m on one row, periect for linear lighting. Epistar chip, brand led and pcb ensure the quality of flexible led strip light. This is an idea selection to meet the demand of indoor lighting design and innovaive lighting projects. Sometimes referred to as "color changing led strip lights," the led strips are as versatile as they are customizable and can be installed in basicallv any space you can imacine. Using a remote controller, you can change the setings, brightness, and colors of the light strips to almost any color you can imagine!

Available Type

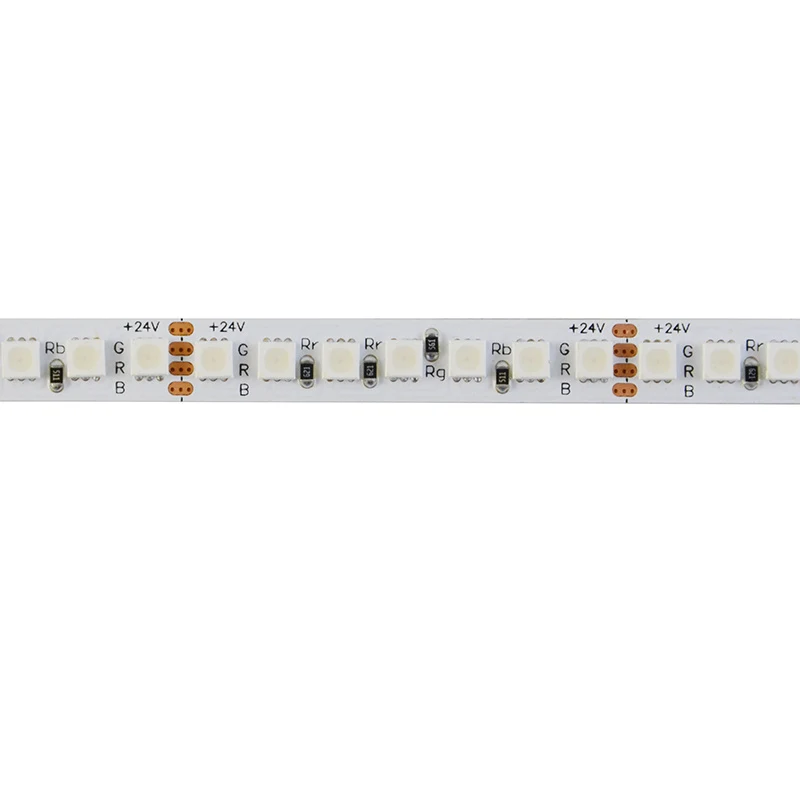

Model No.	SL-3838-168D6	SL-3838-168D8	SL-3838-168D10
LED Light Source	SMD3838
LED Chip QTY	168LEDS/M
Voltage	24V	24V	24V
Power	8W	10W	14W
CRI	/
Lumen	/
PCB Thickness	2oz Double-sided FPCB
PCB Width	6mm	8mm	10mm
PCB Color	White
Beam Angle	120°

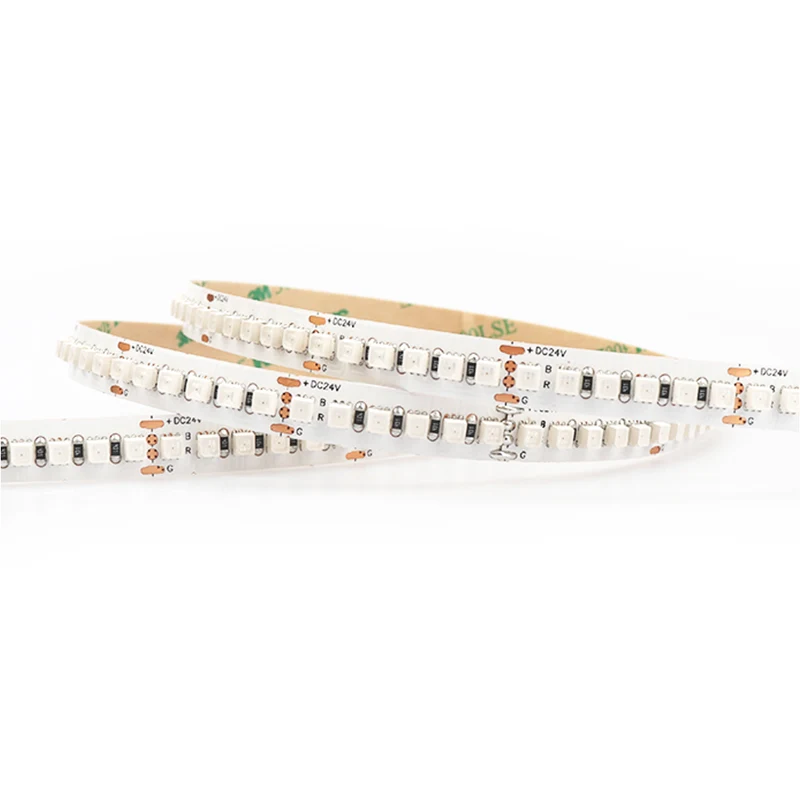

Tape	3M 300LSE Tape on the Back
Length per Roll	16.4′ (5M) or 32.8′(10M)
Length of Cuttable	35.7mm

Product features:

• High brightness

• Adjustable color

• Epistar chip

• 3-5years warranty

• 3M adhesive tape on the back




Applications:

• Home Lighting: Suitable for living rooms, bedrooms, kitchens, providing comfortable and soft lighting.

• Commercial Lighting: Ideal for malls, exhibition halls, hotels, enhancing overall brightness and ambiance.

• Decorative Lighting: Perfect for cabinets, bookshelves, accent walls, adding depth and aesthetic appeal to spaces.

• Outdoor Lighting: Suitable for gardens, balconies, courtyards, with waterproof design ensuring stable performance.

Installation Instructions:

1. Preparation: Ensure the installation surface is clean, flat, and free of dust.

2. Cutting the Strip: Cut the strip light to the desired length at marked intervals (every meter), and properly handle the connection terminals.

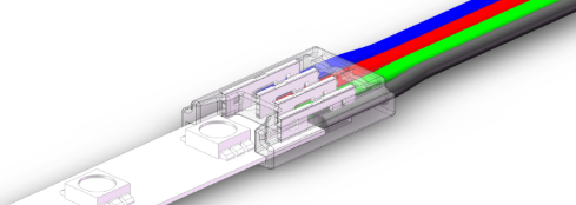

3. Connecting the Power: Connect the strip light to the power adapter, ensuring the voltage matches.

4. Securing the Strip: Peel off the adhesive backing and stick the strip light to the installation area, pressing gently to ensure it is firmly attached.

5. Adjusting Color Temperature: Use the remote control or smart controller to adjust the color temperature, setting the desired lighting effect.

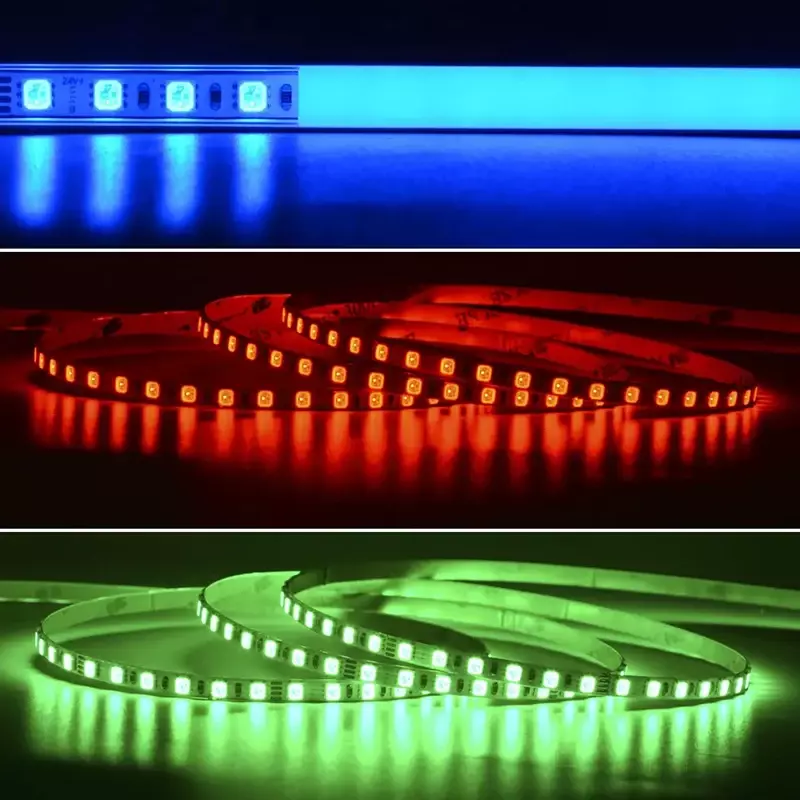

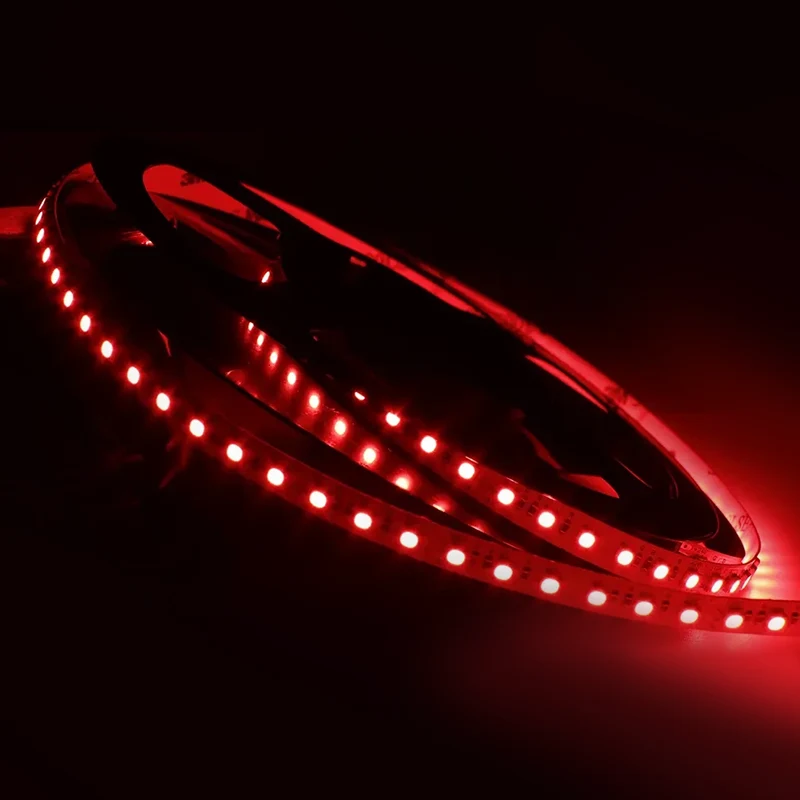

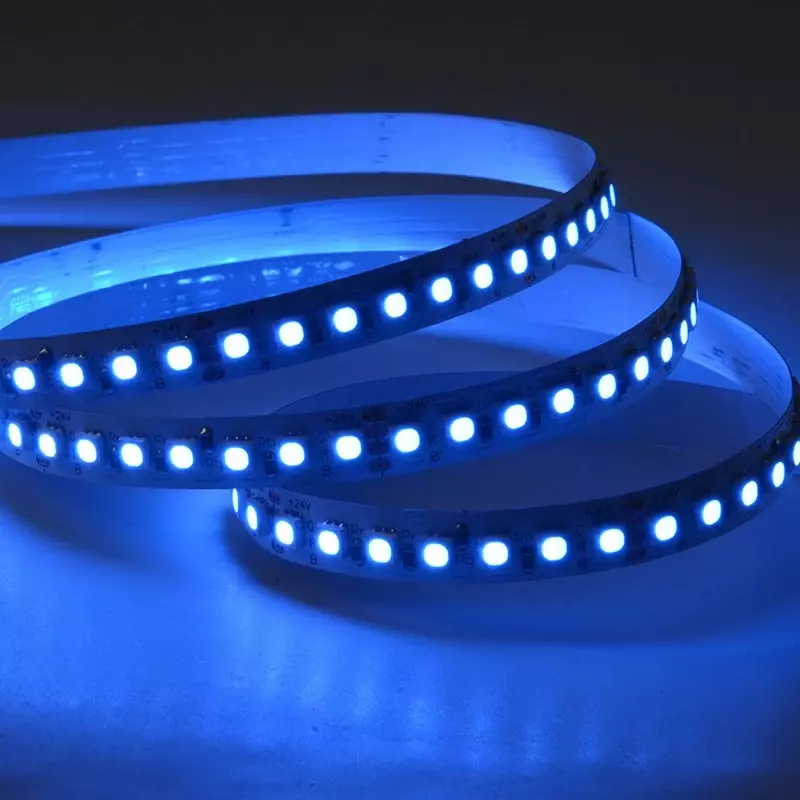

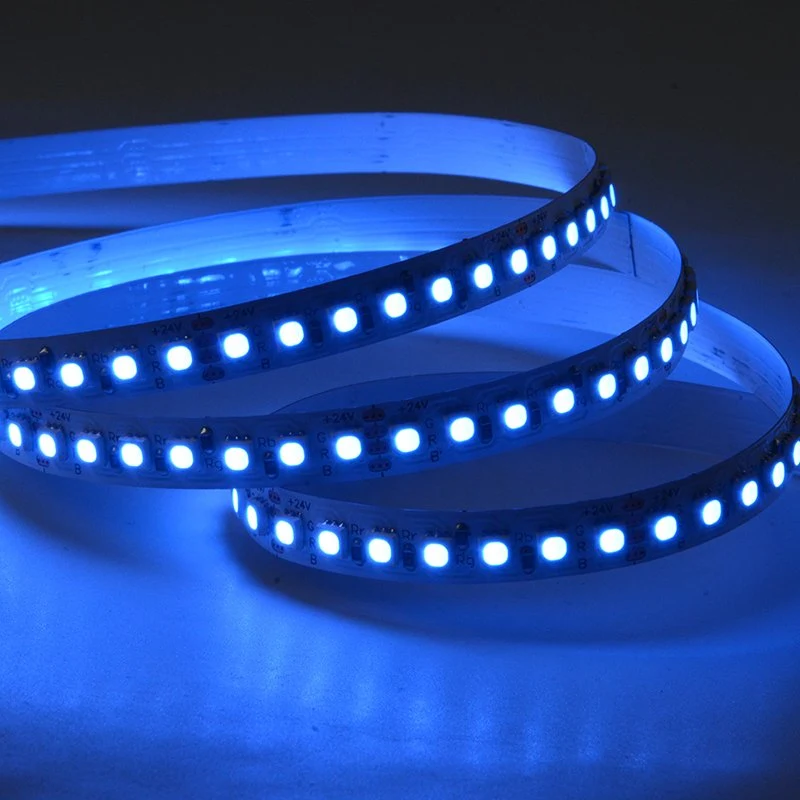

Available Colors

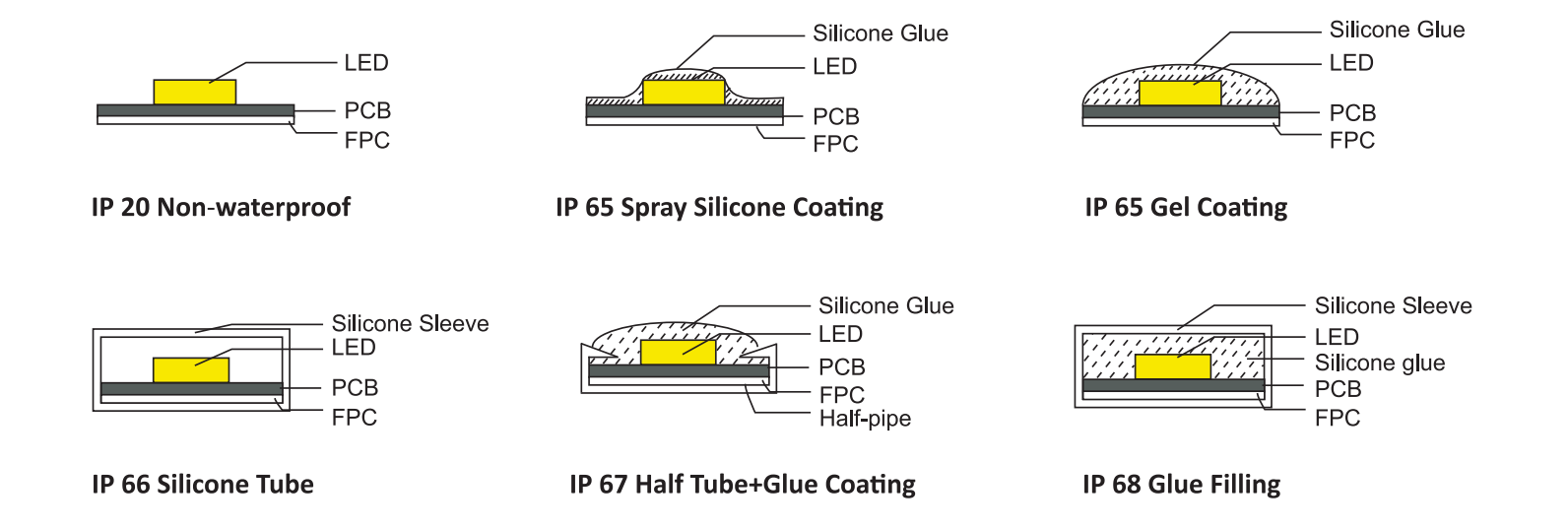

Optional IP Ratings

Advantages of the Silicone Extrusion Process for LED Light Strips：

1. Enhanced Durability: Silicone extruded LED light strips are highly durable. They can withstand extreme temperatures, UV radiation, and harsh environmental conditions, ensuring a long-lasting product that is suitable for both indoor and outdoor applications.

2. Superior Flexibility: The flexibility of silicone allows LED light strips to be bent and shaped without damage, making them ideal for a wide range of installations, including curved and irregular surfaces.

3. Waterproof and Weatherproof: Silicone provides excellent waterproof and weatherproof properties. This makes silicone extruded LED light strips perfect for outdoor use, including in wet and humid environments.

4. Excellent Heat Resistance: Silicone can tolerate high temperatures without degrading, which helps to protect the LEDs from heat damage and ensures consistent performance over time.

5. Uniform Light Diffusion: Silicone materials can diffuse light evenly, reducing hotspots and providing a smooth, consistent light output. This is particularly beneficial for applications requiring a uniform illumination.

6. Chemical Resistance: Silicone is resistant to a variety of chemicals, including oils and solvents. This property helps to protect the LED light strips in industrial and commercial environments where exposure to chemicals may occur.

7. High Transparency: Silicone maintains high transparency, ensuring maximum light output from the LEDs. This enhances the brightness and effectiveness of the LED light strips.

8. Customizable Design: The extrusion process allows for the production of LED light strips in various shapes and sizes. It also enables the customization of color and hardness, meeting specific design requirements and aesthetic preferences.

9. Enhanced Safety: Silicone is non-toxic and has a high resistance to fire. Using silicone extruded LED light strips can enhance safety in applications where fire resistance and low toxicity are critical.

10. Cost-Effective Production: The extrusion process is efficient and cost-effective, especially for large-scale production. It ensures consistent quality, reduces waste, and lowers overall manufacturing costs.

Why Choose Ledodm's COB LED Strips?

• High Lumen Chip

  Lumen parameter is the measurement of led strip light brightness. For cob led strip lights, the chip size is 10*30mm, you can compare the lumen output with others on the market. Doing so, you'll find that our LEDs carries the brightest lumen among led strips in their class.

• 2oz Flexible PCB

  As for cob led light strip, the main key is chip and pcb. 2oz pcb thickness is better than 1oz fleixble pcb, and it has good heat dissipation and long lifespan, that's why we can assure 3 years warranty for new product.

• Great Flexibility

  LEDODM's COB strips are designed to be highly flexible, making them easy to bend and cut to fit various complex installation environments, such as curved surfaces and corners.

• Durability and Longevity

  COB strips use high-quality materials and advanced manufacturing processes, providing better heat dissipation and extending the lifespan of the strips. They have a lower failure rate and lower maintenance costs compared to traditional LED strips.

• Wide Range of Color Temperatures and Colors:

• LEDODM offers COB strips in various color temperatures and colors, catering to different lighting needs, whether for residential, commercial, or industrial applications.


• Professional in LED Strip

  Ledodm is a preferred supplier for led tape light distributor, international lighting designers, building contractors and renowned architects from all over the world. We concern every development in led strip industry and pay close attention to every innovation, and we want share our knowledge and passion with as many people as possible. Our specialists are here to assist in your project’s development from imagination to realization.




  Choosing LEDODM's COB strips means you get a high-quality, durable, and easy-to-install lighting solution suitable for various applications and settings.
