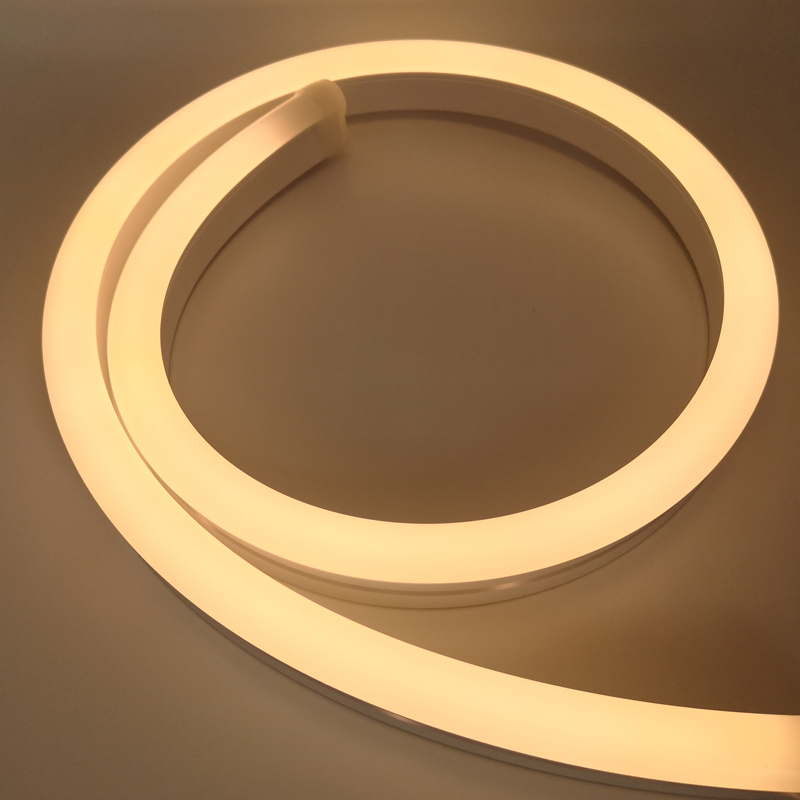

12*25mm SMD5050 72LEDs/m RGBW Flexible Silicone LED Neon Flex Strip Light

  • NL-5050-72D1225

  • DC 24V

  • SMD5050

  • 72LEDs/m

  • 16W/m

Size:
Color:
CRI:
IP Rating:
Availability:

12*25mm SMD5050 72LEDs/m RGBW Flexible Silicone LED Neon Flex Strip Light


12x25 led neon light

Introduction

LED Neon Flex is a dot-free flexible linear light fixture. Adopted first-class eco-friendly uv-resistant silicone material, our neon light comes with a wide array of features allowing lighting designers and specifiers the ability to select the right light. It is perfect for architectural illumination as it provides high performance homogeneous light, ideal for highlighting architectural perimeters and outlines. Side view led neon flex can be horrizontal bendable, easy to make the vivid neon sign what you want. Compared with RGB led neon light, rgbw led neon light white color is pure and bright.


Product Features

  • Silicone Only

  • Epistar SMD5050

  • 3 Years Warranty

  • 80+ High CRI

  • Dimmable Brightness

  • Adjustable Colors

  • IP67 Waterproof

  • Cuttable Length


Specification

Model No. LED Type QTY/M Voltage Size Color Temp IP Rating Power/M CRI
NL-5050-72D1225 SMD5050 72LEDs 24V 12*25mm

RGBW

IP67 16W 80


Available Size

Top View  Vertical Bendable

6x6 led neon light

10x10 led neon light

10x10 led neon light

12x12 led neon light

20x14 led neon light

16x16 neon light

13x13 neon light

13x15 neon light 13 neon light
20 neon light 22 neon light 360

Side View  Horizontal Bendable

16x16 side view neon light

4x10 neon light

6x12 led neon light
6x13 neon light 10x18 neon light 12x20 neon light
12x20 led neon light 8x15 neon light 8x17 neon light
10x23 neon light 12x25 neon light


Applications

  • Home Decorative Lighting

  • Accent Lighting

  • Shop Display Lighting

  • Patio and Garden Lighting

  • Architectural Buidling Lighting

  • Edge Lighting

  • Cove Lighting

  • Letter Lighting

  • Sign Lighting


Why Choose Ledodm's led neon flex?

  • RGBW LED

    For vivid neon flex, we use 4in1 5050 rgbw ledwith high quality chip, pcb and resistor. Our neon light will dim to 70% pf riginal brightness after 50,000 hours.

  • 100% Silicone

     All material is silicone, compared with PVC led neon light, it will become yellow-ish when under sunshine for serveral years.

  • Professional in LED Strip

    Ledodm is a preferred supplier for led neon flex distributor, international lighting designers, building contractors and renowned architects from all over the world. We concern every development in neon light industry and pay close attention to every innovation, and we want share our knowledge and passion with as many people as possible. Our specialists are here to assist in your project’s development from imagination to realization.

neon ligh comparison

12*25mm SMD5050 72LEDs/m RGBW Flexible Silicone LED Neon Flex Strip Light


  • 3 Years Warranty

  • Epistar Chip & Hongli LED

  • Golden Wire & Copper Bracket

  • 2oz or 3oz Flexible Double-sided PCB

  • 24V 6LEDs Cuttable 83.33mm

  • IP67 Waterproof for Outdoor Lighting Project

Model No. LED Type QTY/M Voltage Size Color Temp IP Rating Power/M CRI
NL-5050-72D1225 SMD5050 72LEDs 24V 12*25mm

RGBW

IP67 16W 80


12*25mm SMD5050 72LEDs/m RGBW Flexible Silicone LED Neon Flex Strip Light


neon flex installation


spare parts for neon flex

Prepare the screws and fixed clips


install neon light

Adjust the fixed clips to the appropriate

place, use a screwdriver to fix the screw


fix the neon flex

Put the light emitting surface upwards, then

insert the LED strip into the fixed clips


Bending Direction

bendable neon flex

Note: wrong bening will result in broken led strip inside.



12*25mm SMD5050 72LEDs/m RGBW Flexible Silicone LED Neon Flex Strip Light


 Flex Neon Light FAQ:


  • Q: What is side view neon flex?

    Side view means the light direction of led strip inside, for this item, led strip inside towards the left side, but light surface is top side. Top view led strip inside towards top and light is at the top. For all neon flex, you can only bend it along the side of led strip light inside, so there's vertical bendable and horizontal bendable.


  • Q: What is rgbw led neon light?

    Ledodm's led neon flex light is produced with high lumen rgbw smd5050 72leds/m led strip without spot or dot.


  • Q: Can I ask customized length?

    Yes, we can do customized length for special project.


  • Q: What is extrusion material?

    It's first-class eco-friendly uv-resistant silicone material.


  • Q: Can it be used for outdoor application?

    Yes, it's IP67 wateproof, which can be used for outdoor lighting.


  • Q: What is CRI?

    Color Rendering Index is the refection of the light, when using led strip for lighting, you can see the product under that light.
